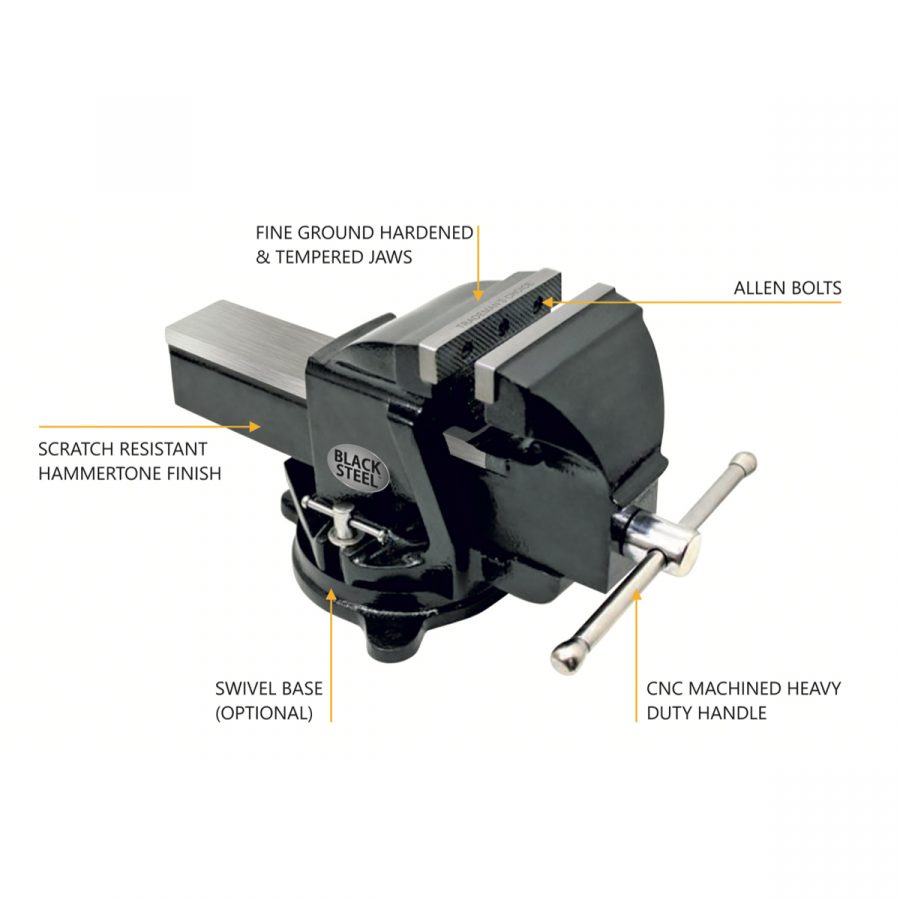

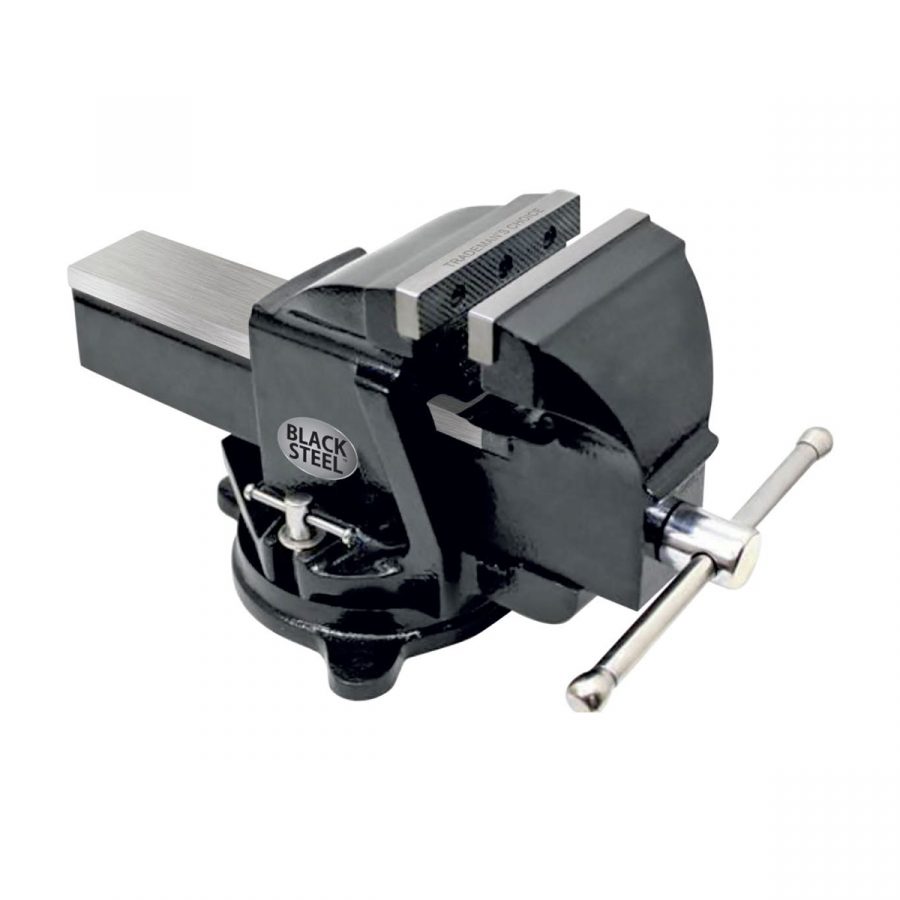

- Fully machined on all load bearing surfaces.
- Safety top prevents slide separating from the body.
- The robust swivel base enables the vice to be smoothly rotated through 360 degrees.
- Two holding down screws lock the vice firmly in any position.
Part No. | Size (Inches) | Jaw Width | Jaw Opening | Throat Depth | Pkg/Carton | Pcs/Export (Carton) |
---|---|---|---|---|---|---|
TGM-10224 | 4 | 103 | 132 | 74 | 1 | 2 |
TGM-10224.5 | 4.5 | 117 | 135 | 74 | 1 | 1 |
TGM-10225 | 5 | 128 | 178 | 83 | 1 | 1 |
TGM-10226 | 6 | 156 | 206 | 95 | 1 | 1 |
TGM-10228 | 8 | 204 | 225 | 105 | 1 | 1 |
Available with Anvil also.
Color Options
